byucc.jhdl.Logic.Modules
Class toggle

java.lang.Object
  byucc.jhdl.base.Nameable
      byucc.jhdl.base.Node
          byucc.jhdl.base.Cell
              byucc.jhdl.base.Structural
                  byucc.jhdl.Logic.LogicGates
                      byucc.jhdl.Logic.LogicStatic
                          byucc.jhdl.Logic.Logic
                              byucc.jhdl.Logic.Modules.toggle

All Implemented Interfaces:

BooleanFlags, Clockable, byucc.jhdl.base.Propagateable, TreeListable

public class toggle

extends Logic

General Description

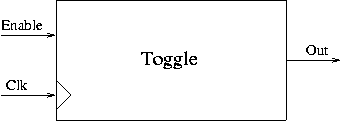

Toggle simply toggles its output on every clock cycle, whenver toggle is enabled.

Usage Examples:

A simple way to instance the toggle is by using static method calls in the OTHERS class. If desired, however, the constructor calls may be made explicitly, as shown below. Since toggle is so simple, the constructor call is identical to the static method call.

First, you must import the Logic.Modules package:
import byucc.jhdl.Logic.Modules.*;

To instance a named toggle, the following constructor would be used:
new toggle(this, en, out, "name");

To instance an unamed toggle, the constructor would be:
new toggle(this, en, out);

For all available constructors, see Constructor Summary or Constructor Detail.

Version:

$Revision $

Author:

Dan Baker

Field Summary

static CellInterface[]

cell_interface

Fields inherited from class byucc.jhdl.Logic.Logic

ABOVE, ALIGN_BOTTOM, ALIGN_CENTER, ALIGN_LEFT, ALIGN_LSB, ALIGN_MSB, ALIGN_RIGHT, ALIGN_TOP, BELOW, DOWN, EAST_OF, LEFT_OF, MAX_PACK, NORTH_OF, ON, ONTOP, ONTOP_OF, RIGHT_OF, SOUTH_OF, TOLEFT, TORIGHT, UNCONSTRAINED, UP, WEST_OF

Fields inherited from class byucc.jhdl.Logic.LogicGates

tech_mapper

Fields inherited from class byucc.jhdl.base.Cell

BOOLEAN, CELL_NAME_DECLARATION, CellInterfaceDeterminesUniqueNetlistStructure, DETERMINE_FROM_STRING, GENERICS_DECLARATION, implicit_interface, IMPLICIT_INTERFACE_DECLARATION, INTEGER, INTERFACE_DECLARATION, LONG, PORT_IOS_DECLARATION, PORT_NAMES_DECLARATION, PORT_NET_NAMES_DECLARATION, PORT_PROPERTIES, PORT_WIDTHS_DECLARATION, SIGN_EXT, STRING, ZERO_PAD

Fields inherited from interface byucc.jhdl.base.BooleanFlags

ANTECEDANT_IS_BEHAVIORALLY_MODELED, ASYNC_PORT, ASYNCHRONOUS_RESOLVED, ATOMICALLY_PLACEABLE, ATOMICALLY_UNMAPPABLE, BEHAVIORALLY_MODELED_BRANCH, CLK_PORT, CLOCK_METHOD_IMPLEMENTED_BY_USER, CLOCK_METHOD_IS_DISABLED, CLOCKABLE_IS_SCHEDULED, DANGLING_IS_OK, DELETE_MARK, FATAL_BUILD_ERROR_OCCURED, HAS_BEEN_TRACED, HAS_USER_SPECIFIED_NAME, HWUPDATE, IMPLICIT_PORT, IN_CLK_PORT, IN_PORT, INOUT_PORT, IO_TYPE_FLAGS, IS_BEHAVIORALLY_MODELED, IS_ON_BUILD_STACK, IS_ON_PROP_LIST, IS_PLACED, METHODS_IMPLEMENTED_BY_USER, NETLISTABLE, ORIG_WIRE_IS_ATOMIC, OUT_PORT, PLACEMENT_IS_LOCKED, PROPAGATE_METHOD_IMPLEMENTED_BY_USER, PROPAGATE_METHOD_IS_DISABLED, RECURSION_FLAG, RESET_METHOD_IMPLEMENTED_BY_USER, SIMULATEABLE, SOURCELESS_IS_OK, SYNC_PORT, VISIBLE

Constructor Summary

toggle(Node parent, Wire enable, Wire toggle_out)

toggle(Node parent, Wire enable, Wire toggle_out, java.lang.String name)

Methods inherited from class byucc.jhdl.Logic.Logic

clockDriver, clockDriver, connect_implicit_ports, connectImplicitPorts, constructSubCell, constructSubCellNoImplicitPorts, enableNewPlacement, enableNewPlacement, extend, extend, getDefaultClock, getDefaultTechMapper, getGlobalClock, getSinkCell, getSourceCell, getSourceCell, getSourceLeaf, getSourcePlaceable, getSourcePlaceableLeaf, getSubCellClass, getTechMapHint, getTechMapHint, getTechMapper, growAndShiftl, lockChildPlacement, lsb, lsb, map, map, map, map, map, map, map, map, map, map, map, map, map, map, map, map, map, map, map, msb, msb, msbIndx, netlist, netlist, netlist, netlist, netlist, netlist, netlist, netlist, padClock_o, padClock_o, padClock_o, padClock, padClock, padClock, padIn_o, padIn_o, padIn_o, padIn, padIn, padIn, padInout_o, padInout_o, padInout_o, padInout, padInout, padInout, padOut_o, padOut_o, padOut_o, padOut, padOut, padOut, padOutT_o, padOutT_o, padOutT_o, padOutT, padOutT, padOutT, place, place, place, place, place, place, place, place, place, place, place, place, place, place, place, place, place, printTechMapHints, range, rotate, rotate, scale, scale, setBBox, setDefaultTechMapper, setFloorPlannerIsMaster, setTechMappingEnabled, setWandH, signExtend_o, signExtend, signExtend, sink, source, takeBot_o, takeBot, takeBot, takeBotSigned_o, takeBotSigned, takeTop_o, takeTop, takeTop, techmap, techMappingEnabled, translate, translate, zeroExtend_o, zeroExtend, zeroExtend, zeroExtendRight_o, zeroExtendRight

Methods inherited from class byucc.jhdl.Logic.LogicStatic

add_o, add_o, and_o, and_o, and, and, buf_o, buf_o, buf, buf, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, constant_o, constant_o, constant_o, constant_o, constant_o, constant_o, constant_o, constant_o, constant, constant, constant, constant, constant, constant, constant, constant, constant, constant, gnd_o, gnd_o, gnd, gnd, gnd, gnd, mux_o, mux, nc, nc, nc, nc, nc, nc, not_o, not_o, not, not, or_o, or_o, or, or, reg_o, reg, vcc_o, vcc_o, vcc, vcc, vcc, vcc, wire, wire, wire, wire, xnor_o, xnor_o, xnor, xor_o, xor

Methods inherited from class byucc.jhdl.Logic.LogicGates

add_o, add_o, add_o, add_o, add_o, add_o, add, add, add, add, addsub_o, addsub_o, addsub_o, addsub_o, addsub_o, addsub_o, addsub, addsub, addsub, addsub, and_o, and_o, and_o, and_o, and_o, and_o, and_o, and_o, and_o, and_o, and_o, and_o, and_o, and_o, and_o, and_o, and_o, and_o, and_o, and, and, and, and, and, and, and, and, and, and, and, and, and, and, and, and, and, and, ashiftr_o, ashiftr, ashiftr, buf_o, buf_o, buf, buf, checkValueRepresentableInWidth, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, constant_o, constant_o, constant_o, constant_o, constant_o, constant_o, constant_o, constant_o, constant, constant, constant, constant, constant, constant, constant, constant, constant, constant, gnd_o, gnd_o, gnd, gnd, gnd, gnd, mux_o, mux_o, mux_o, mux_o, mux_o, mux_o, mux, mux, mux, mux, mux, mux, name, nand_o, nand_o, nand_o, nand_o, nand_o, nand_o, nand_o, nand_o, nand_o, nand_o, nand_o, nand_o, nand_o, nand_o, nand_o, nand_o, nand_o, nand_o, nand_o, nand, nand, nand, nand, nand, nand, nand, nand, nand, nand, nand, nand, nand, nand, nand, nand, nand, nand, nc, nc, nc, nc, nor_o, nor_o, nor_o, nor_o, nor_o, nor_o, nor_o, nor_o, nor_o, nor_o, nor_o, nor_o, nor_o, nor_o, nor_o, nor_o, nor_o, nor_o, nor_o, nor, nor, nor, nor, nor, nor, nor, nor, nor, nor, nor, nor, nor, nor, nor, nor, nor, nor, not_o, not_o, not, not, or_o, or_o, or_o, or_o, or_o, or_o, or_o, or_o, or_o, or_o, or_o, or_o, or_o, or_o, or_o, or_o, or_o, or_o, or_o, or, or, or, or, or, or, or, or, or, or, or, or, or, or, or, or, or, or, pulldown, pulldown, pullup, pullup, reg_o, reg_o, reg_o, reg_o, reg, reg, reg, reg, regc_o, regc_o, regc_o, regc_o, regc, regc, regc, regc, regce_o, regce_o, regce_o, regce_o, regce, regce, regce, regce, regp_o, regp_o, regp_o, regp_o, regp, regp, regp, regp, regpe_o, regpe_o, regpe_o, regpe_o, regpe, regpe, regpe, regpe, regr_o, regr_o, regr_o, regr_o, regr, regr, regr, regr, regre_o, regre_o, regre_o, regre_o, regre, regre, regre, regre, regs_o, regs_o, regs_o, regs_o, regs, regs, regs, regs, regse_o, regse_o, regse_o, regse_o, regse, regse, regse, regse, shiftl_o, shiftl, shiftl, shiftr_o, shiftr, shiftr, sub_o, sub_o, sub_o, sub_o, sub_o, sub_o, sub, sub, sub, sub, tbuf_o, tbuf_o, tbuf, tbuf, vcc_o, vcc_o, vcc, vcc, vcc, vcc, wire, wire, wire, wire, xnor_o, xnor_o, xnor_o, xnor_o, xnor_o, xnor_o, xnor_o, xnor_o, xnor_o, xnor_o, xnor_o, xnor_o, xnor_o, xnor_o, xnor_o, xnor_o, xnor_o, xnor_o, xnor_o, xnor, xnor, xnor, xnor, xnor, xnor, xnor, xnor, xnor, xnor, xnor, xnor, xnor, xnor, xnor, xnor, xnor, xnor, xor_o, xor_o, xor_o, xor_o, xor_o, xor_o, xor_o, xor_o, xor_o, xor_o, xor_o, xor_o, xor_o, xor_o, xor_o, xor_o, xor_o, xor_o, xor_o, xor, xor, xor, xor, xor, xor, xor, xor, xor, xor, xor, xor, xor, xor, xor, xor, xor, xor

Methods inherited from class byucc.jhdl.base.Structural

behavioralModelIsAvailable, clock, clockMethodIsDisabled, clockMethodIsDisabled, clockMethodIsEnabled, clockMethodIsEnabled, defaultSimulationModelIsBehavioral, hasBeenTraced, hasBeenTraced, hasBehaviorInClockMethod, hasBehaviorInPropagateMethod, isAsynchronouslyScheduled, isAsynchronouslyScheduled, isFallingEdgeTriggered, isReadyToBeAsynchronouslyScheduled, isRisingEdgeTriggered, needsToBeAsynchronouslyScheduled, needsToBeClocked, propagate, propagateMethodIsDisabled, propagateMethodIsDisabled, propagateMethodIsEnabled, propagateMethodIsEnabled, reset, willUseHWUpdate, willUseHWUpdate

Methods inherited from class byucc.jhdl.base.Cell

addPort, addPorts, addProperties, addProperties, addProperty, addProperty, addProperty, addProperty, antecedantIsBehaviorallyModeled, antecedantIsBehaviorallyModeled, bind, bind, bind, bind, cellInterfaceDeterminesUniqueNetlistStructure, clk, connect, connectAllWires, connectOptional, disableAllBehavioralModels, disableBehavioralModel, enableBehavioralModel, getArgument, getAttachedPort, getAttachedWire, getAttachedWireNoException, getCellName, getCellNetlist, getCellNetList, getCellNetlist, getCellNetlist, getDescendents, getFlatNetlist, getFlatNetlistableChildren, getGeneric, getHeight, getNetlistableChildren, getPlacementInfo, getPortProperties, getPortRecord, getPortRecords, getProperties, getProperty, getPropertyValue, getSinkWires, getSourceWires, getUniqueCellName, getWidth, getX, getY, hasPort, hasPorts, in, in, inout, inout, isAsynchronousSourceSinkResolved, isBehaviorallyModeled, isBehaviorallyModeledBranch, isInput, isLeafCell, isNetlistable, isNetlistable, isNetlistablePort, isNetlistLeaf, isNotNetlistable, isNotNetlistablePort, isNotVisible, isOutput, isPlaceable, isPlaceable, isPlaced, isPlaced, isPlacementLocked, isRoot, isSimulateable, isSimulateable, isSink, isSource, isVisible, isVisible, join, lockPlacement, nc, out, out, param, popHierarchy, port, port, port, postorderCheck, preorderCheck, pushHierarchy, pushHierarchy, pushHierarchy, pushHierarchy, pushHierarchyNoImplicitPorts, pushHierarchyNoImplicitPorts, removeAllUnconnectedPorts, removePort, removeProperty, replaceProperty, replaceProperty, resetBehavioralModelsToDefaults, setAsynchronousSourceSinkResolved, setGeneric, setHeight, setNotNetlistable, setNotNetlistable, setNotVisible, setNotVisible, setPlacementInfo, setPortNotNetlistable, setPortNotNetlistable, setProperty, setWidth, subClassDelete, toString, uniquifyCell, userDefinedClockCount, verifyAndCleanup

Methods inherited from class byucc.jhdl.base.Node

addObservable, addSimulatorCallback, checkAll, delete, getBuildingFlag, getChildren, getChildrenEnumeration, getInstanceName, getParent, getParentCell, getRelatives, getSystem, getWires, optimize, orphanAllowed, printAllChildren, printTree, removeSimulatorCallback, setDefaultClock

Methods inherited from class byucc.jhdl.base.Nameable

caseSensitivity, caseSensitivity, disableNameClashChecking, getFullName, getFullNameNoTestBench, getHierNameNoTestBench, getInstanceNo, getInstanceNumber, getLeafName, getLeafName, getRelativeName, getUserName, getUserName, hasUserSpecifiedName, isDescendantOf, setInstanceNumber

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

Field Detail

cell_interface

public static CellInterface[] cell_interface

Constructor Detail

toggle

public toggle(Node parent,
              Wire enable,
              Wire toggle_out)

toggle

public toggle(Node parent,
              Wire enable,
              Wire toggle_out,
              java.lang.String name)
