byucc.jhdl.Logic.Modules
Class downcnt

java.lang.Object
  byucc.jhdl.base.Nameable
      byucc.jhdl.base.Node
          byucc.jhdl.base.Cell
              byucc.jhdl.base.Structural
                  byucc.jhdl.Logic.LogicGates
                      byucc.jhdl.Logic.LogicStatic
                          byucc.jhdl.Logic.Logic
                              byucc.jhdl.Logic.Modules.downcnt

All Implemented Interfaces:

BooleanFlags, Clockable, byucc.jhdl.base.Propagateable, TreeListable

public class downcnt

extends Logic

General Description

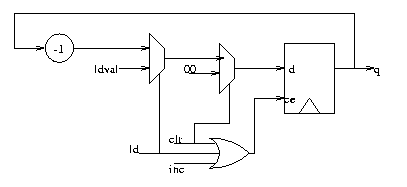

A generic size down counter, that can specified to be loadable, clearable, enabled, or any combination of the three. When two or more of these signals are asserted at the same time, the order of priority is clr, ld, and then dec. All state changes occur on the rising edge.

Usage Examples:

The easiest way to instance the downcnt is by using static method calls in the COUNTERS class. If desired, however, the constructor calls may be made explicitly, as shown below.

First, you must import the Logic.Modules package:
import byucc.jhdl.Logic.Modules.*;

To instance a downcnt with clear, dec, and load commands, the following constructor would be used:
new downcnt(this, clr, dec, ld, ldval, q, "name");

To instance a simple loadable-only downcnt, the constructor would be:
new downcnt(this, null, null, ld, ldval, q, "name");

For all available constructors, see Constructor Summary or Constructor Detail.

Version:

$Revision: 1.14 $

Author:

Dan Baker

Field Summary

static CellInterface[]

cell_interface

Fields inherited from class byucc.jhdl.Logic.Logic

ABOVE, ALIGN_BOTTOM, ALIGN_CENTER, ALIGN_LEFT, ALIGN_LSB, ALIGN_MSB, ALIGN_RIGHT, ALIGN_TOP, BELOW, DOWN, EAST_OF, LEFT_OF, MAX_PACK, NORTH_OF, ON, ONTOP, ONTOP_OF, RIGHT_OF, SOUTH_OF, TOLEFT, TORIGHT, UNCONSTRAINED, UP, WEST_OF

Fields inherited from class byucc.jhdl.Logic.LogicGates

tech_mapper

Fields inherited from class byucc.jhdl.base.Cell

BOOLEAN, CELL_NAME_DECLARATION, CellInterfaceDeterminesUniqueNetlistStructure, DETERMINE_FROM_STRING, GENERICS_DECLARATION, implicit_interface, IMPLICIT_INTERFACE_DECLARATION, INTEGER, INTERFACE_DECLARATION, LONG, PORT_IOS_DECLARATION, PORT_NAMES_DECLARATION, PORT_NET_NAMES_DECLARATION, PORT_PROPERTIES, PORT_WIDTHS_DECLARATION, SIGN_EXT, STRING, ZERO_PAD

Fields inherited from interface byucc.jhdl.base.BooleanFlags

ANTECEDANT_IS_BEHAVIORALLY_MODELED, ASYNC_PORT, ASYNCHRONOUS_RESOLVED, ATOMICALLY_PLACEABLE, ATOMICALLY_UNMAPPABLE, BEHAVIORALLY_MODELED_BRANCH, CLK_PORT, CLOCK_METHOD_IMPLEMENTED_BY_USER, CLOCK_METHOD_IS_DISABLED, CLOCKABLE_IS_SCHEDULED, DANGLING_IS_OK, DELETE_MARK, FATAL_BUILD_ERROR_OCCURED, HAS_BEEN_TRACED, HAS_USER_SPECIFIED_NAME, HWUPDATE, IMPLICIT_PORT, IN_CLK_PORT, IN_PORT, INOUT_PORT, IO_TYPE_FLAGS, IS_BEHAVIORALLY_MODELED, IS_ON_BUILD_STACK, IS_ON_PROP_LIST, IS_PLACED, METHODS_IMPLEMENTED_BY_USER, NETLISTABLE, ORIG_WIRE_IS_ATOMIC, OUT_PORT, PLACEMENT_IS_LOCKED, PROPAGATE_METHOD_IMPLEMENTED_BY_USER, PROPAGATE_METHOD_IS_DISABLED, RECURSION_FLAG, RESET_METHOD_IMPLEMENTED_BY_USER, SIMULATEABLE, SOURCELESS_IS_OK, SYNC_PORT, VISIBLE

Constructor Summary

downcnt(Node parent, Wire clr, Wire dec, Wire ld, Wire ldval, Wire q)

downcnt(Node parent, Wire clr, Wire dec, Wire ld, Wire ldval, Wire q, java.lang.String instanceName)

Methods inherited from class byucc.jhdl.Logic.Logic

clockDriver, clockDriver, connect_implicit_ports, connectImplicitPorts, constructSubCell, constructSubCellNoImplicitPorts, enableNewPlacement, enableNewPlacement, extend, extend, getDefaultClock, getDefaultTechMapper, getGlobalClock, getSinkCell, getSourceCell, getSourceCell, getSourceLeaf, getSourcePlaceable, getSourcePlaceableLeaf, getSubCellClass, getTechMapHint, getTechMapHint, getTechMapper, growAndShiftl, lockChildPlacement, lsb, lsb, map, map, map, map, map, map, map, map, map, map, map, map, map, map, map, map, map, map, map, msb, msb, msbIndx, netlist, netlist, netlist, netlist, netlist, netlist, netlist, netlist, padClock_o, padClock_o, padClock_o, padClock, padClock, padClock, padIn_o, padIn_o, padIn_o, padIn, padIn, padIn, padInout_o, padInout_o, padInout_o, padInout, padInout, padInout, padOut_o, padOut_o, padOut_o, padOut, padOut, padOut, padOutT_o, padOutT_o, padOutT_o, padOutT, padOutT, padOutT, place, place, place, place, place, place, place, place, place, place, place, place, place, place, place, place, place, printTechMapHints, range, rotate, rotate, scale, scale, setBBox, setDefaultTechMapper, setFloorPlannerIsMaster, setTechMappingEnabled, setWandH, signExtend_o, signExtend, signExtend, sink, source, takeBot_o, takeBot, takeBot, takeBotSigned_o, takeBotSigned, takeTop_o, takeTop, takeTop, techmap, techMappingEnabled, translate, translate, zeroExtend_o, zeroExtend, zeroExtend, zeroExtendRight_o, zeroExtendRight

Methods inherited from class byucc.jhdl.Logic.LogicStatic

add_o, add_o, and_o, and_o, and, and, buf_o, buf_o, buf, buf, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, constant_o, constant_o, constant_o, constant_o, constant_o, constant_o, constant_o, constant_o, constant, constant, constant, constant, constant, constant, constant, constant, constant, constant, gnd_o, gnd_o, gnd, gnd, gnd, gnd, mux_o, mux, nc, nc, nc, nc, nc, nc, not_o, not_o, not, not, or_o, or_o, or, or, reg_o, reg, vcc_o, vcc_o, vcc, vcc, vcc, vcc, wire, wire, wire, wire, xnor_o, xnor_o, xnor, xor_o, xor

Methods inherited from class byucc.jhdl.Logic.LogicGates

add_o, add_o, add_o, add_o, add_o, add_o, add, add, add, add, addsub_o, addsub_o, addsub_o, addsub_o, addsub_o, addsub_o, addsub, addsub, addsub, addsub, and_o, and_o, and_o, and_o, and_o, and_o, and_o, and_o, and_o, and_o, and_o, and_o, and_o, and_o, and_o, and_o, and_o, and_o, and_o, and, and, and, and, and, and, and, and, and, and, and, and, and, and, and, and, and, and, ashiftr_o, ashiftr, ashiftr, buf_o, buf_o, buf, buf, checkValueRepresentableInWidth, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, constant_o, constant_o, constant_o, constant_o, constant_o, constant_o, constant_o, constant_o, constant, constant, constant, constant, constant, constant, constant, constant, constant, constant, gnd_o, gnd_o, gnd, gnd, gnd, gnd, mux_o, mux_o, mux_o, mux_o, mux_o, mux_o, mux, mux, mux, mux, mux, mux, name, nand_o, nand_o, nand_o, nand_o, nand_o, nand_o, nand_o, nand_o, nand_o, nand_o, nand_o, nand_o, nand_o, nand_o, nand_o, nand_o, nand_o, nand_o, nand_o, nand, nand, nand, nand, nand, nand, nand, nand, nand, nand, nand, nand, nand, nand, nand, nand, nand, nand, nc, nc, nc, nc, nor_o, nor_o, nor_o, nor_o, nor_o, nor_o, nor_o, nor_o, nor_o, nor_o, nor_o, nor_o, nor_o, nor_o, nor_o, nor_o, nor_o, nor_o, nor_o, nor, nor, nor, nor, nor, nor, nor, nor, nor, nor, nor, nor, nor, nor, nor, nor, nor, nor, not_o, not_o, not, not, or_o, or_o, or_o, or_o, or_o, or_o, or_o, or_o, or_o, or_o, or_o, or_o, or_o, or_o, or_o, or_o, or_o, or_o, or_o, or, or, or, or, or, or, or, or, or, or, or, or, or, or, or, or, or, or, pulldown, pulldown, pullup, pullup, reg_o, reg_o, reg_o, reg_o, reg, reg, reg, reg, regc_o, regc_o, regc_o, regc_o, regc, regc, regc, regc, regce_o, regce_o, regce_o, regce_o, regce, regce, regce, regce, regp_o, regp_o, regp_o, regp_o, regp, regp, regp, regp, regpe_o, regpe_o, regpe_o, regpe_o, regpe, regpe, regpe, regpe, regr_o, regr_o, regr_o, regr_o, regr, regr, regr, regr, regre_o, regre_o, regre_o, regre_o, regre, regre, regre, regre, regs_o, regs_o, regs_o, regs_o, regs, regs, regs, regs, regse_o, regse_o, regse_o, regse_o, regse, regse, regse, regse, shiftl_o, shiftl, shiftl, shiftr_o, shiftr, shiftr, sub_o, sub_o, sub_o, sub_o, sub_o, sub_o, sub, sub, sub, sub, tbuf_o, tbuf_o, tbuf, tbuf, vcc_o, vcc_o, vcc, vcc, vcc, vcc, wire, wire, wire, wire, xnor_o, xnor_o, xnor_o, xnor_o, xnor_o, xnor_o, xnor_o, xnor_o, xnor_o, xnor_o, xnor_o, xnor_o, xnor_o, xnor_o, xnor_o, xnor_o, xnor_o, xnor_o, xnor_o, xnor, xnor, xnor, xnor, xnor, xnor, xnor, xnor, xnor, xnor, xnor, xnor, xnor, xnor, xnor, xnor, xnor, xnor, xor_o, xor_o, xor_o, xor_o, xor_o, xor_o, xor_o, xor_o, xor_o, xor_o, xor_o, xor_o, xor_o, xor_o, xor_o, xor_o, xor_o, xor_o, xor_o, xor, xor, xor, xor, xor, xor, xor, xor, xor, xor, xor, xor, xor, xor, xor, xor, xor, xor

Methods inherited from class byucc.jhdl.base.Structural

behavioralModelIsAvailable, clock, clockMethodIsDisabled, clockMethodIsDisabled, clockMethodIsEnabled, clockMethodIsEnabled, defaultSimulationModelIsBehavioral, hasBeenTraced, hasBeenTraced, hasBehaviorInClockMethod, hasBehaviorInPropagateMethod, isAsynchronouslyScheduled, isAsynchronouslyScheduled, isFallingEdgeTriggered, isReadyToBeAsynchronouslyScheduled, isRisingEdgeTriggered, needsToBeAsynchronouslyScheduled, needsToBeClocked, propagate, propagateMethodIsDisabled, propagateMethodIsDisabled, propagateMethodIsEnabled, propagateMethodIsEnabled, reset, willUseHWUpdate, willUseHWUpdate

Methods inherited from class byucc.jhdl.base.Cell

addPort, addPorts, addProperties, addProperties, addProperty, addProperty, addProperty, addProperty, antecedantIsBehaviorallyModeled, antecedantIsBehaviorallyModeled, bind, bind, bind, bind, cellInterfaceDeterminesUniqueNetlistStructure, clk, connect, connectAllWires, connectOptional, disableAllBehavioralModels, disableBehavioralModel, enableBehavioralModel, getArgument, getAttachedPort, getAttachedWire, getAttachedWireNoException, getCellName, getCellNetlist, getCellNetList, getCellNetlist, getCellNetlist, getDescendents, getFlatNetlist, getFlatNetlistableChildren, getGeneric, getHeight, getNetlistableChildren, getPlacementInfo, getPortProperties, getPortRecord, getPortRecords, getProperties, getProperty, getPropertyValue, getSinkWires, getSourceWires, getUniqueCellName, getWidth, getX, getY, hasPort, hasPorts, in, in, inout, inout, isAsynchronousSourceSinkResolved, isBehaviorallyModeled, isBehaviorallyModeledBranch, isInput, isLeafCell, isNetlistable, isNetlistable, isNetlistablePort, isNetlistLeaf, isNotNetlistable, isNotNetlistablePort, isNotVisible, isOutput, isPlaceable, isPlaceable, isPlaced, isPlaced, isPlacementLocked, isRoot, isSimulateable, isSimulateable, isSink, isSource, isVisible, isVisible, join, lockPlacement, nc, out, out, param, popHierarchy, port, port, port, postorderCheck, preorderCheck, pushHierarchy, pushHierarchy, pushHierarchy, pushHierarchy, pushHierarchyNoImplicitPorts, pushHierarchyNoImplicitPorts, removeAllUnconnectedPorts, removePort, removeProperty, replaceProperty, replaceProperty, resetBehavioralModelsToDefaults, setAsynchronousSourceSinkResolved, setGeneric, setHeight, setNotNetlistable, setNotNetlistable, setNotVisible, setNotVisible, setPlacementInfo, setPortNotNetlistable, setPortNotNetlistable, setProperty, setWidth, subClassDelete, toString, uniquifyCell, userDefinedClockCount, verifyAndCleanup

Methods inherited from class byucc.jhdl.base.Node

addObservable, addSimulatorCallback, checkAll, delete, getBuildingFlag, getChildren, getChildrenEnumeration, getInstanceName, getParent, getParentCell, getRelatives, getSystem, getWires, optimize, orphanAllowed, printAllChildren, printTree, removeSimulatorCallback, setDefaultClock

Methods inherited from class byucc.jhdl.base.Nameable

caseSensitivity, caseSensitivity, disableNameClashChecking, getFullName, getFullNameNoTestBench, getHierNameNoTestBench, getInstanceNo, getInstanceNumber, getLeafName, getLeafName, getRelativeName, getUserName, getUserName, hasUserSpecifiedName, isDescendantOf, setInstanceNumber

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

Field Detail

cell_interface

public static CellInterface[] cell_interface

Constructor Detail

downcnt

public downcnt(Node parent,
               Wire clr,
               Wire dec,
               Wire ld,
               Wire ldval,
               Wire q)

downcnt

public downcnt(Node parent,
               Wire clr,
               Wire dec,
               Wire ld,
               Wire ldval,
               Wire q,
               java.lang.String instanceName)
