byucc.jhdl.Logic.Modules
Class delay

java.lang.Object
  byucc.jhdl.base.Nameable
      byucc.jhdl.base.Node
          byucc.jhdl.base.Cell
              byucc.jhdl.base.Structural
                  byucc.jhdl.Logic.LogicGates
                      byucc.jhdl.Logic.LogicStatic
                          byucc.jhdl.Logic.Logic
                              byucc.jhdl.Logic.Modules.delay

All Implemented Interfaces:

BooleanFlags, Clockable, byucc.jhdl.base.Propagateable, TreeListable

public class delay

extends Logic

General Description

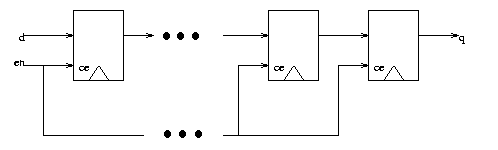

Delay takes an input, and outputs it after a specified delay. For Technology Independence, this is done by cascading flip-flops. All state changes occur on the rising edge.
