byucc.jhdl.Logic.Modules
Class accum

java.lang.Object
  byucc.jhdl.base.Nameable
      byucc.jhdl.base.Node
          byucc.jhdl.base.Cell
              byucc.jhdl.base.Structural
                  byucc.jhdl.Logic.LogicGates
                      byucc.jhdl.Logic.LogicStatic
                          byucc.jhdl.Logic.Logic
                              byucc.jhdl.Logic.Modules.accum

All Implemented Interfaces:

BooleanFlags, Clockable, byucc.jhdl.base.Propagateable, TreeListable

public class accum

extends Logic

General Description

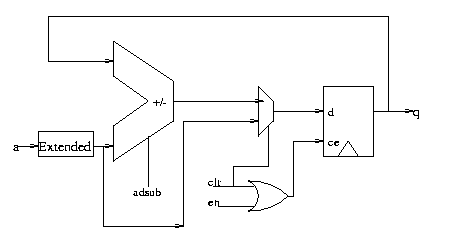

Accum takes in a generic-sized input, adds or subtracts it to the current contents of the accumulator, and outputs the result. It can be specified be signed, clearable, enabled, and with an adder/subtractor (default is just the adder), or any combination of the four. When clr is asserted, the input value goes directly to the output.
The output wire width must be at least as wide as the input wire width. If the result is too large to fit onto the output wire (overflow occurs), the result is simply truncated. All state changes occur on the rising edge.

Usage Examples:

The easiest way to instance the accum is by using static method calls in the OTHERS class. If desired, however, the constructor calls may be made explicitly, as shown below.

First, you must import the Logic.Modules package:
import byucc.jhdl.Logic.Modules.*;

To instance an unsigned, clearable, enabled accum, the following constructor would be used:
new accum(this, a, clr, null, en, false, q, "name");

To instance a signed addsub accum, the constructor would be:
new accum(this, a, null, adsub, null, true, q, "name");

For all available constructors, see Constructor Summary or Constructor Detail.

Version:

$Revision: 1.6 $

Author:

Dan Baker

Field Summary

static CellInterface[]

cell_interface

Fields inherited from class byucc.jhdl.Logic.Logic

ABOVE, ALIGN_BOTTOM, ALIGN_CENTER, ALIGN_LEFT, ALIGN_LSB, ALIGN_MSB, ALIGN_RIGHT, ALIGN_TOP, BELOW, DOWN, EAST_OF, LEFT_OF, MAX_PACK, NORTH_OF, ON, ONTOP, ONTOP_OF, RIGHT_OF, SOUTH_OF, TOLEFT, TORIGHT, UNCONSTRAINED, UP, WEST_OF

Fields inherited from class byucc.jhdl.Logic.LogicGates

tech_mapper

Fields inherited from class byucc.jhdl.base.Cell

BOOLEAN, CELL_NAME_DECLARATION, CellInterfaceDeterminesUniqueNetlistStructure, DETERMINE_FROM_STRING, GENERICS_DECLARATION, implicit_interface, IMPLICIT_INTERFACE_DECLARATION, INTEGER, INTERFACE_DECLARATION, LONG, PORT_IOS_DECLARATION, PORT_NAMES_DECLARATION, PORT_NET_NAMES_DECLARATION, PORT_PROPERTIES, PORT_WIDTHS_DECLARATION, SIGN_EXT, STRING, ZERO_PAD

Fields inherited from interface byucc.jhdl.base.BooleanFlags

ANTECEDANT_IS_BEHAVIORALLY_MODELED, ASYNC_PORT, ASYNCHRONOUS_RESOLVED, ATOMICALLY_PLACEABLE, ATOMICALLY_UNMAPPABLE, BEHAVIORALLY_MODELED_BRANCH, CLK_PORT, CLOCK_METHOD_IMPLEMENTED_BY_USER, CLOCK_METHOD_IS_DISABLED, CLOCKABLE_IS_SCHEDULED, DANGLING_IS_OK, DELETE_MARK, FATAL_BUILD_ERROR_OCCURED, HAS_BEEN_TRACED, HAS_USER_SPECIFIED_NAME, HWUPDATE, IMPLICIT_PORT, IN_CLK_PORT, IN_PORT, INOUT_PORT, IO_TYPE_FLAGS, IS_BEHAVIORALLY_MODELED, IS_ON_BUILD_STACK, IS_ON_PROP_LIST, IS_PLACED, METHODS_IMPLEMENTED_BY_USER, NETLISTABLE, ORIG_WIRE_IS_ATOMIC, OUT_PORT, PLACEMENT_IS_LOCKED, PROPAGATE_METHOD_IMPLEMENTED_BY_USER, PROPAGATE_METHOD_IS_DISABLED, RECURSION_FLAG, RESET_METHOD_IMPLEMENTED_BY_USER, SIMULATEABLE, SOURCELESS_IS_OK, SYNC_PORT, VISIBLE

Constructor Summary

accum(Node parent, Wire a, Wire clr, Wire adsub, Wire en, boolean signed, Wire q)

accum(Node parent, Wire a, Wire clr, Wire adsub, Wire en, boolean signed, Wire q, java.lang.String instanceName)

Methods inherited from class byucc.jhdl.Logic.Logic

clockDriver, clockDriver, connect_implicit_ports, connectImplicitPorts, constructSubCell, constructSubCellNoImplicitPorts, enableNewPlacement, enableNewPlacement, extend, extend, getDefaultClock, getDefaultTechMapper, getGlobalClock, getSinkCell, getSourceCell, getSourceCell, getSourceLeaf, getSourcePlaceable, getSourcePlaceableLeaf, getSubCellClass, getTechMapHint, getTechMapHint, getTechMapper, growAndShiftl, lockChildPlacement, lsb, lsb, map, map, map, map, map, map, map, map, map, map, map, map, map, map, map, map, map, map, map, msb, msb, msbIndx, netlist, netlist, netlist, netlist, netlist, netlist, netlist, netlist, padClock_o, padClock_o, padClock_o, padClock, padClock, padClock, padIn_o, padIn_o, padIn_o, padIn, padIn, padIn, padInout_o, padInout_o, padInout_o, padInout, padInout, padInout, padOut_o, padOut_o, padOut_o, padOut, padOut, padOut, padOutT_o, padOutT_o, padOutT_o, padOutT, padOutT, padOutT, place, place, place, place, place, place, place, place, place, place, place, place, place, place, place, place, place, printTechMapHints, range, rotate, rotate, scale, scale, setBBox, setDefaultTechMapper, setFloorPlannerIsMaster, setTechMappingEnabled, setWandH, signExtend_o, signExtend, signExtend, sink, source, takeBot_o, takeBot, takeBot, takeBotSigned_o, takeBotSigned, takeTop_o, takeTop, takeTop, techmap, techMappingEnabled, translate, translate, zeroExtend_o, zeroExtend, zeroExtend, zeroExtendRight_o, zeroExtendRight

Methods inherited from class byucc.jhdl.Logic.LogicStatic

add_o, add_o, and_o, and_o, and, and, buf_o, buf_o, buf, buf, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, constant_o, constant_o, constant_o, constant_o, constant_o, constant_o, constant_o, constant_o, constant, constant, constant, constant, constant, constant, constant, constant, constant, constant, gnd_o, gnd_o, gnd, gnd, gnd, gnd, mux_o, mux, nc, nc, nc, nc, nc, nc, not_o, not_o, not, not, or_o, or_o, or, or, reg_o, reg, vcc_o, vcc_o, vcc, vcc, vcc, vcc, wire, wire, wire, wire, xnor_o, xnor_o, xnor, xor_o, xor

Methods inherited from class byucc.jhdl.Logic.LogicGates

add_o, add_o, add_o, add_o, add_o, add_o, add, add, add, add, addsub_o, addsub_o, addsub_o, addsub_o, addsub_o, addsub_o, addsub, addsub, addsub, addsub, and_o, and_o, and_o, and_o, and_o, and_o, and_o, and_o, and_o, and_o, and_o, and_o, and_o, and_o, and_o, and_o, and_o, and_o, and_o, and, and, and, and, and, and, and, and, and, and, and, and, and, and, and, and, and, and, ashiftr_o, ashiftr, ashiftr, buf_o, buf_o, buf, buf, checkValueRepresentableInWidth, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat_o, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, concat, constant_o, constant_o, constant_o, constant_o, constant_o, constant_o, constant_o, constant_o, constant, constant, constant, constant, constant, constant, constant, constant, constant, constant, gnd_o, gnd_o, gnd, gnd, gnd, gnd, mux_o, mux_o, mux_o, mux_o, mux_o, mux_o, mux, mux, mux, mux, mux, mux, name, nand_o, nand_o, nand_o, nand_o, nand_o, nand_o, nand_o, nand_o, nand_o, nand_o, nand_o, nand_o, nand_o, nand_o, nand_o, nand_o, nand_o, nand_o, nand_o, nand, nand, nand, nand, nand, nand, nand, nand, nand, nand, nand, nand, nand, nand, nand, nand, nand, nand, nc, nc, nc, nc, nor_o, nor_o, nor_o, nor_o, nor_o, nor_o, nor_o, nor_o, nor_o, nor_o, nor_o, nor_o, nor_o, nor_o, nor_o, nor_o, nor_o, nor_o, nor_o, nor, nor, nor, nor, nor, nor, nor, nor, nor, nor, nor, nor, nor, nor, nor, nor, nor, nor, not_o, not_o, not, not, or_o, or_o, or_o, or_o, or_o, or_o, or_o, or_o, or_o, or_o, or_o, or_o, or_o, or_o, or_o, or_o, or_o, or_o, or_o, or, or, or, or, or, or, or, or, or, or, or, or, or, or, or, or, or, or, pulldown, pulldown, pullup, pullup, reg_o, reg_o, reg_o, reg_o, reg, reg, reg, reg, regc_o, regc_o, regc_o, regc_o, regc, regc, regc, regc, regce_o, regce_o, regce_o, regce_o, regce, regce, regce, regce, regp_o, regp_o, regp_o, regp_o, regp, regp, regp, regp, regpe_o, regpe_o, regpe_o, regpe_o, regpe, regpe, regpe, regpe, regr_o, regr_o, regr_o, regr_o, regr, regr, regr, regr, regre_o, regre_o, regre_o, regre_o, regre, regre, regre, regre, regs_o, regs_o, regs_o, regs_o, regs, regs, regs, regs, regse_o, regse_o, regse_o, regse_o, regse, regse, regse, regse, shiftl_o, shiftl, shiftl, shiftr_o, shiftr, shiftr, sub_o, sub_o, sub_o, sub_o, sub_o, sub_o, sub, sub, sub, sub, tbuf_o, tbuf_o, tbuf, tbuf, vcc_o, vcc_o, vcc, vcc, vcc, vcc, wire, wire, wire, wire, xnor_o, xnor_o, xnor_o, xnor_o, xnor_o, xnor_o, xnor_o, xnor_o, xnor_o, xnor_o, xnor_o, xnor_o, xnor_o, xnor_o, xnor_o, xnor_o, xnor_o, xnor_o, xnor_o, xnor, xnor, xnor, xnor, xnor, xnor, xnor, xnor, xnor, xnor, xnor, xnor, xnor, xnor, xnor, xnor, xnor, xnor, xor_o, xor_o, xor_o, xor_o, xor_o, xor_o, xor_o, xor_o, xor_o, xor_o, xor_o, xor_o, xor_o, xor_o, xor_o, xor_o, xor_o, xor_o, xor_o, xor, xor, xor, xor, xor, xor, xor, xor, xor, xor, xor, xor, xor, xor, xor, xor, xor, xor

Methods inherited from class byucc.jhdl.base.Structural

behavioralModelIsAvailable, clock, clockMethodIsDisabled, clockMethodIsDisabled, clockMethodIsEnabled, clockMethodIsEnabled, defaultSimulationModelIsBehavioral, hasBeenTraced, hasBeenTraced, hasBehaviorInClockMethod, hasBehaviorInPropagateMethod, isAsynchronouslyScheduled, isAsynchronouslyScheduled, isFallingEdgeTriggered, isReadyToBeAsynchronouslyScheduled, isRisingEdgeTriggered, needsToBeAsynchronouslyScheduled, needsToBeClocked, propagate, propagateMethodIsDisabled, propagateMethodIsDisabled, propagateMethodIsEnabled, propagateMethodIsEnabled, reset, willUseHWUpdate, willUseHWUpdate

Methods inherited from class byucc.jhdl.base.Cell

addPort, addPorts, addProperties, addProperties, addProperty, addProperty, addProperty, addProperty, antecedantIsBehaviorallyModeled, antecedantIsBehaviorallyModeled, bind, bind, bind, bind, cellInterfaceDeterminesUniqueNetlistStructure, clk, connect, connectAllWires, connectOptional, disableAllBehavioralModels, disableBehavioralModel, enableBehavioralModel, getArgument, getAttachedPort, getAttachedWire, getAttachedWireNoException, getCellName, getCellNetlist, getCellNetList, getCellNetlist, getCellNetlist, getDescendents, getFlatNetlist, getFlatNetlistableChildren, getGeneric, getHeight, getNetlistableChildren, getPlacementInfo, getPortProperties, getPortRecord, getPortRecords, getProperties, getProperty, getPropertyValue, getSinkWires, getSourceWires, getUniqueCellName, getWidth, getX, getY, hasPort, hasPorts, in, in, inout, inout, isAsynchronousSourceSinkResolved, isBehaviorallyModeled, isBehaviorallyModeledBranch, isInput, isLeafCell, isNetlistable, isNetlistable, isNetlistablePort, isNetlistLeaf, isNotNetlistable, isNotNetlistablePort, isNotVisible, isOutput, isPlaceable, isPlaceable, isPlaced, isPlaced, isPlacementLocked, isRoot, isSimulateable, isSimulateable, isSink, isSource, isVisible, isVisible, join, lockPlacement, nc, out, out, param, popHierarchy, port, port, port, postorderCheck, preorderCheck, pushHierarchy, pushHierarchy, pushHierarchy, pushHierarchy, pushHierarchyNoImplicitPorts, pushHierarchyNoImplicitPorts, removeAllUnconnectedPorts, removePort, removeProperty, replaceProperty, replaceProperty, resetBehavioralModelsToDefaults, setAsynchronousSourceSinkResolved, setGeneric, setHeight, setNotNetlistable, setNotNetlistable, setNotVisible, setNotVisible, setPlacementInfo, setPortNotNetlistable, setPortNotNetlistable, setProperty, setWidth, subClassDelete, toString, uniquifyCell, userDefinedClockCount, verifyAndCleanup

Methods inherited from class byucc.jhdl.base.Node

addObservable, addSimulatorCallback, checkAll, delete, getBuildingFlag, getChildren, getChildrenEnumeration, getInstanceName, getParent, getParentCell, getRelatives, getSystem, getWires, optimize, orphanAllowed, printAllChildren, printTree, removeSimulatorCallback, setDefaultClock

Methods inherited from class byucc.jhdl.base.Nameable

caseSensitivity, caseSensitivity, disableNameClashChecking, getFullName, getFullNameNoTestBench, getHierNameNoTestBench, getInstanceNo, getInstanceNumber, getLeafName, getLeafName, getRelativeName, getUserName, getUserName, hasUserSpecifiedName, isDescendantOf, setInstanceNumber

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

Field Detail

cell_interface

public static CellInterface[] cell_interface

Constructor Detail

accum

public accum(Node parent,
             Wire a,
             Wire clr,
             Wire adsub,
             Wire en,
             boolean signed,
             Wire q)

accum

public accum(Node parent,
             Wire a,
             Wire clr,
             Wire adsub,
             Wire en,
             boolean signed,
             Wire q,
             java.lang.String instanceName)
